inet::EcnTagBase Class Reference

Class generated from inet/networklayer/common/EcnTag.msg:22 by opp_msgtool. More...

#include <EcnTag_m.h>

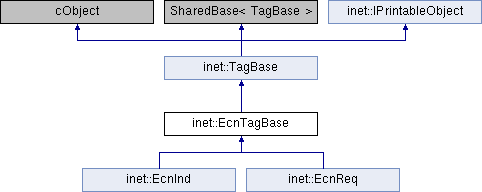

Inheritance diagram for inet::EcnTagBase:

Public Member Functions
	EcnTagBase ()
	EcnTagBase (const EcnTagBase &other)
virtual	~EcnTagBase ()
EcnTagBase &	operator= (const EcnTagBase &other)
virtual EcnTagBase *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual int	getExplicitCongestionNotification () const
virtual void	setExplicitCongestionNotification (int explicitCongestionNotification)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const EcnTagBase &)=delete

Protected Attributes
int	explicitCongestionNotification = -1

Private Member Functions
void	copy (const EcnTagBase &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/networklayer/common/EcnTag.msg:22 by opp_msgtool.

//
// This is an abstract base class that should not be directly added as a tag.
//
class EcnTagBase extends TagBase
{
    int explicitCongestionNotification = -1; // explicit congestion notification
}

Constructor & Destructor Documentation

EcnTagBase() [1/2]

inet::EcnTagBase::EcnTagBase

(

)

EcnTagBase() [2/2]

inet::EcnTagBase::EcnTagBase

(

const EcnTagBase &

other

)

~EcnTagBase()

virtual inet::EcnTagBase::~EcnTagBase ( )

virtual

Member Function Documentation

copy()

void inet::EcnTagBase::copy ( const EcnTagBase &  other )

private

dup()

virtual EcnTagBase* inet::EcnTagBase::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::EcnInd, and inet::EcnReq.

{return new EcnTagBase(*this);}

getExplicitCongestionNotification()

virtual int inet::EcnTagBase::getExplicitCongestionNotification ( ) const

virtual

operator=()

EcnTagBase& inet::EcnTagBase::operator=

(

const EcnTagBase &

other

)

operator==()

bool inet::EcnTagBase::operator== ( const EcnTagBase &  )

protecteddelete

parsimPack()

virtual void inet::EcnTagBase::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::EcnInd, and inet::EcnReq.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::EcnTagBase::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::EcnInd, and inet::EcnReq.

Referenced by inet::doParsimUnpacking().

setExplicitCongestionNotification()

virtual void inet::EcnTagBase::setExplicitCongestionNotification ( int  explicitCongestionNotification )

virtual

Member Data Documentation

explicitCongestionNotification

int inet::EcnTagBase::explicitCongestionNotification = -1

protected

---

The documentation for this class was generated from the following file:

• EcnTag_m.h
