inet::DirectionTag Class Reference

Class generated from inet/common/DirectionTag.msg:32 by opp_msgtool. More...

#include <DirectionTag_m.h>

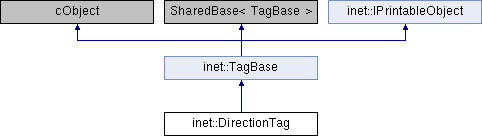

Inheritance diagram for inet::DirectionTag:

Public Member Functions
	DirectionTag ()
	DirectionTag (const DirectionTag &other)
virtual	~DirectionTag ()
DirectionTag &	operator= (const DirectionTag &other)
virtual DirectionTag *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual Direction	getDirection () const
virtual void	setDirection (Direction direction)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const DirectionTag &)=delete

Protected Attributes
Direction	direction = DIRECTION_UNDEFINED

Private Member Functions
void	copy (const DirectionTag &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/DirectionTag.msg:32 by opp_msgtool.

//
// This tag specifies the intended direction of the packet as one of inbound,
// outbound, or undefined. The direction should be set to:
//  - outbound when
//    - a new packet is generated (e.g. in an application or in a protocol like TCP)
//    - a packet is sent to the lower layer
//    - a packet is received from the upper layer
//  - inbound when
//    - a packet is forwarded (e.g. in a protocol like IP)
//    - a packet is received from the lower layer
//    - a packet is sent to the upper layer
//
class DirectionTag extends TagBase
{
    Direction direction = DIRECTION_UNDEFINED;
}

Constructor & Destructor Documentation

DirectionTag() [1/2]

inet::DirectionTag::DirectionTag

(

)

DirectionTag() [2/2]

inet::DirectionTag::DirectionTag

(

const DirectionTag &

other

)

~DirectionTag()

virtual inet::DirectionTag::~DirectionTag ( )

virtual

Member Function Documentation

copy()

void inet::DirectionTag::copy ( const DirectionTag &  other )

private

dup()

virtual DirectionTag* inet::DirectionTag::dup ( ) const

inlineoverridevirtual

{return new DirectionTag(*this);}

getDirection()

virtual Direction inet::DirectionTag::getDirection ( ) const

virtual

operator=()

DirectionTag& inet::DirectionTag::operator=

(

const DirectionTag &

other

)

operator==()

bool inet::DirectionTag::operator== ( const DirectionTag &  )

protecteddelete

parsimPack()

virtual void inet::DirectionTag::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::DirectionTag::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Referenced by inet::doParsimUnpacking().

setDirection()

virtual void inet::DirectionTag::setDirection ( Direction  direction )

virtual

Referenced by inet::PacketEmitter::processPacket().

Member Data Documentation

direction

Direction inet::DirectionTag::direction = DIRECTION_UNDEFINED

protected

---

The documentation for this class was generated from the following file:

• DirectionTag_m.h
